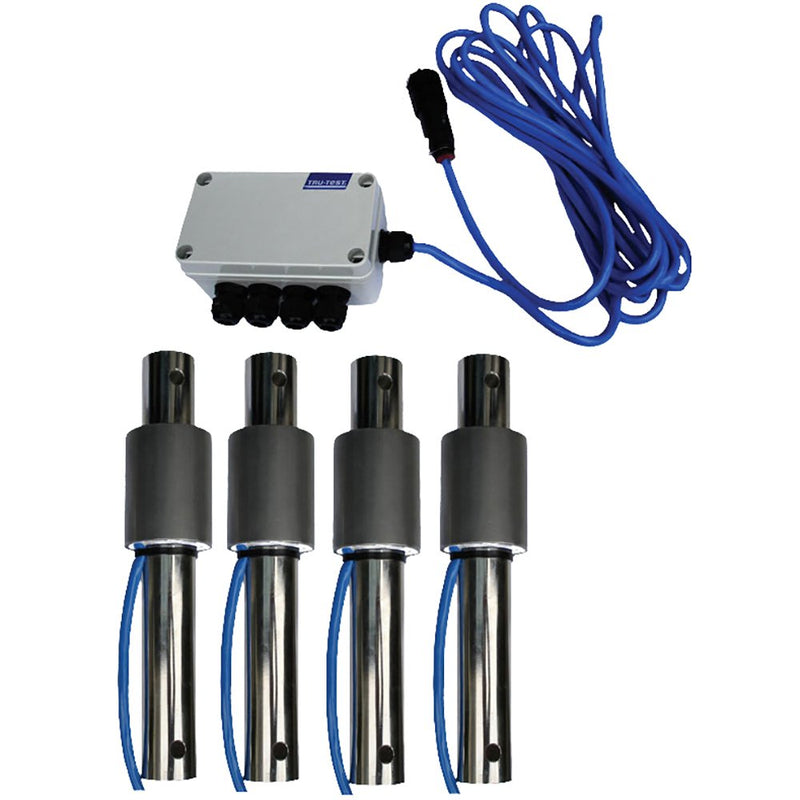

Tru-Test XHD2 Load Cells

• Load Cell Length: 11"
• Load Cell Diameter: 1.5"
• Cable Length: 26"
• Total Capacity: 10,000 lbs
• XHD2 Load Cells feature an extra heavy duty design for permanent installation under manual or hydraulic squeeze chutes and multiple animal group scales.
• The load cells are individually wired with a junction box for easy set-up. A 26 foot cable provides you with setup flexibility.
• Sealed load cells protect against moisture damage, allowing the load bars to remain outside.
• The XHD2 Load Bars have a total capacity of 10,000 pounds.
• These load bars can be used with any Tru-Test weigh scale without calibration.
• XHD2

 Tru-Test Load Cells are recognized for their rugged durability and performance in harsh environments. The system is fully water, dirt and rodent resistant. Cells are made from heavy duty plated tool steel and sealed for corrosion resistance. Heavy duty cables minimize cable damage.

Designed for specialized weighing uses including manual or hydraulic squeeze chutes (mounted under the chute or suspended above), tilt and rotating chutes, multiple animal platform scales, and other heavy usage applications.
