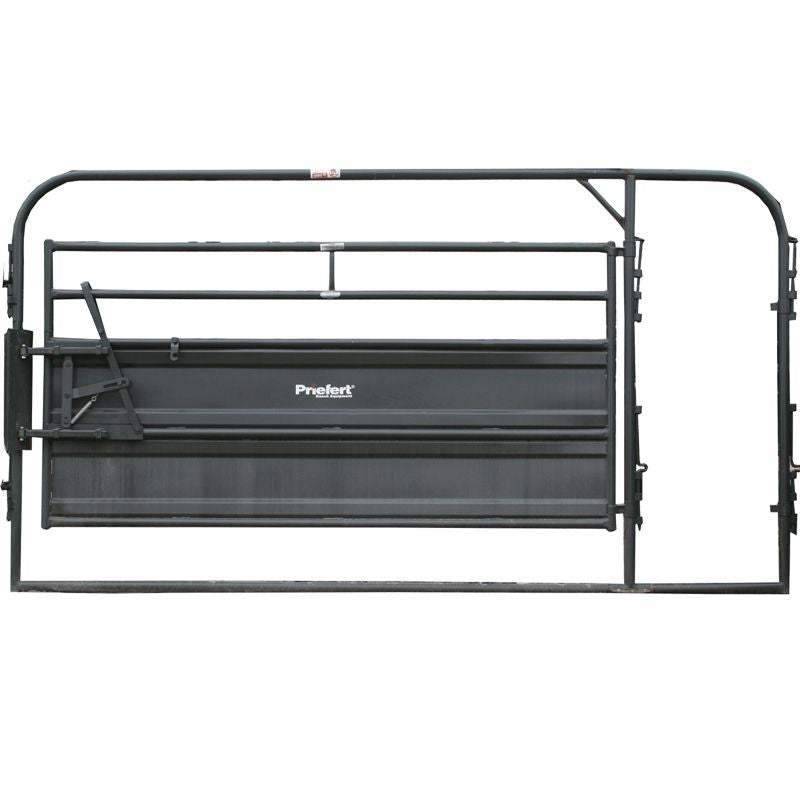

Priefert Sheeted Bow Gate

Free shipping not available on this item - Weight: [386.0 ] lbs

Style #: SBGGY Coupons Not Applicable

On Backorder. Est. Ship Date: Call To Check Availability

  • Overall Width: 161.75”
  • Gate Width: 10’
  • Alley Opening Width: 29”
  • Overall Height: 87.5”
  • Weight: 386 lbs (All weights approximate)
  • Number of gate rails: 6
  • Number of gate stays: 1
  • Spring loaded Double Piston Lever Latch
  • Bottom of the gate features 14 gauge sheeted steel
  • When properly installed, the sheeting begins 11” above ground and continues to 50” above the ground
  • The gate frame is constructed from 2” OD 14 gauge tubing
  • Top of the gate features two rails constructed from 2” OD 14 gauge tubing with 8” spacing between the rails
  • Architectural Grade Powder Coat Finish
  • Color: Grey

Specifically designed for use with Priefert Solid Sweep Systems, the SBG serves as the sweep gate and features a spring loaded Double Piston Lever Latch. The SBG also includes the initial opening into the crowding alley and stable connection points for the Radius Bars and Radius Bow that help maintain the correct radius for the sweep. This product features an Architectural Grade Powder Coat finish to help it resist rust and scratching, while UV inhibitors in the powder help the SBG resist fading, ensuring that your product holds up well and looks great for many years to come.
