Priefert ROPING ARENA SIDE BY SIDE TEAM AND CALF

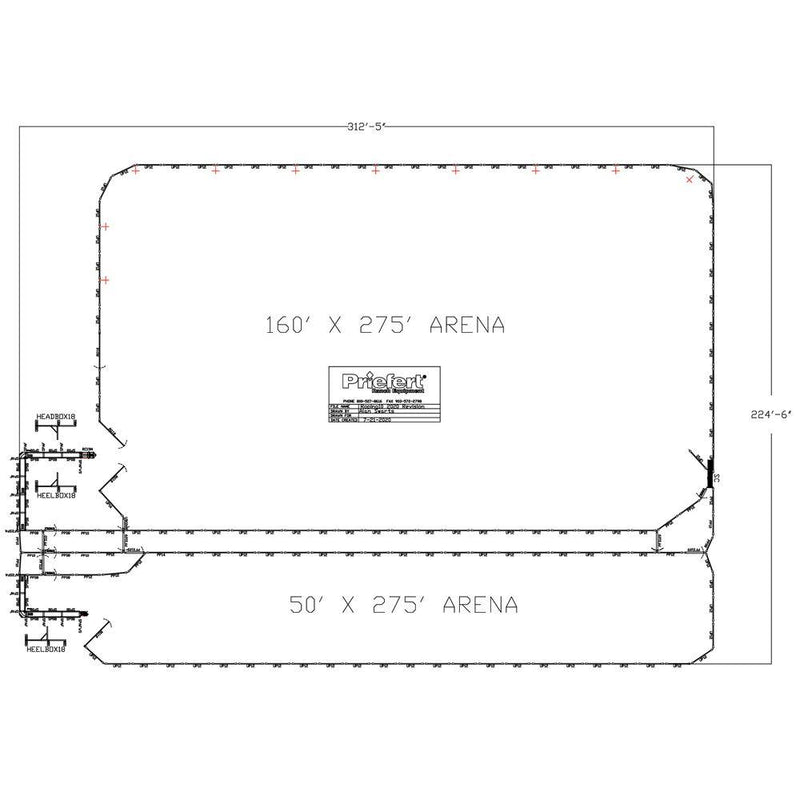

While the idea of having your own roping arena is appealing, the thought of designing and building an arena is often a daunting one. Not to worry, this is where the experts at Priefert Ranch Equipment can help. Priefert is proud to offer a number of pre-designed arena kits. Priefert’s Roping Arenas provide a safe and attractive area for riding and practicing. Inspired by the arena layout of the world’s top All-Around Cowboy, this side-by-side arena design is ideal for the multi-event cowboy or cowgirl. It features a 160’ x 275’ team roping arena and a 50’ x 275’ calf roping arena that share a 10’ wide return alley.

The opposite end of the arena includes a stripping area that leads into a small catch pen. A 10’ wide shared return alley connects the catch pen with the lead up alley to the roping chute. This return alley makes it convenient to return a set of steers or calves for a second round of runs. The calf roping arena in this setup includes a Priefert Roping Box and a manual Priefert Calf Roping Chute.

This side-by-side arena layout is primarily constructed from Utility Panels, with high stress or crowding areas constructed from Premier Panels. Our Utility Panel is our number one selling “Horse-Safe” Panel, offering a number of safety features not found on competitors’ panels. Premier Panels are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. Our Utility and Premier Panels feature chain connectors to ensure tight connections and offer increased versatility to allow for connections over uneven ground. These panels feature an Architectural Grade Powder Coat Finish to help them resist rust, scratches, and fading.

• Arena Dimensions: 160’ x 275’ Team Roping arena, 50’ x 275’ Calf Roping arena with a shared 10’ wide return alley
• Crowding and high stress areas are constructed from Premier Panels
• Premier Panels constructed from 1.66” OD 16 gauge Quadraform™ tubing, with 1.050” OD vertical stays fitted through drilled rails
• Roping Arenas and return alley are constructed from 12’ panels
• Utility Panels constructed from 1.66” OD 20 gauge round tubing, with 1.050” OD vertical stays fitted through drilled rails
• Panels, Stripping Chute Entry Frame, Stripping Chute Release Gate, roping chutes, and Roping Boxes feature Architectural Grade Powder Coat Finish
• This kit also includes a Model 22 Manual Roping Chute, a Manual Calf Roping Chute, Steer Panel, "no-back" alley stops, a stripping chute area constructed with a Stripping Chute Entry Frame and Stripping Chute Release Gate, and 3 full size Roping boxes
• ROPING10
